[AWS] EKS Automation- 7주차 - ACK S3 생성

2023.06.06 - [클라우드/AWS] - [AWS] EKS Automation- 7주차 - 실습환경 구축



실습 순서는  ACK Controller  설치 / IRSA 설정 / S3 생성, 삭제 입니다.



실습

ACK Controller  설치 - 참고 (https://gallery.ecr.aws/aws-controllers-k8s)

# 서비스명 변수 지정
export SERVICE=s3

# helm 차트 다운로드
#aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws
export RELEASE_VERSION=$(curl -sL https://api.github.com/repos/aws-controllers-k8s/$SERVICE-controller/releases/latest | grep '"tag_name":' | cut -d'"' -f4 | cut -c 2-)
helm pull oci://public.ecr.aws/aws-controllers-k8s/$SERVICE-chart --version=$RELEASE_VERSION
tar xzvf $SERVICE-chart-$RELEASE_VERSION.tgz

# helm chart 확인
tree ~/$SERVICE-chart

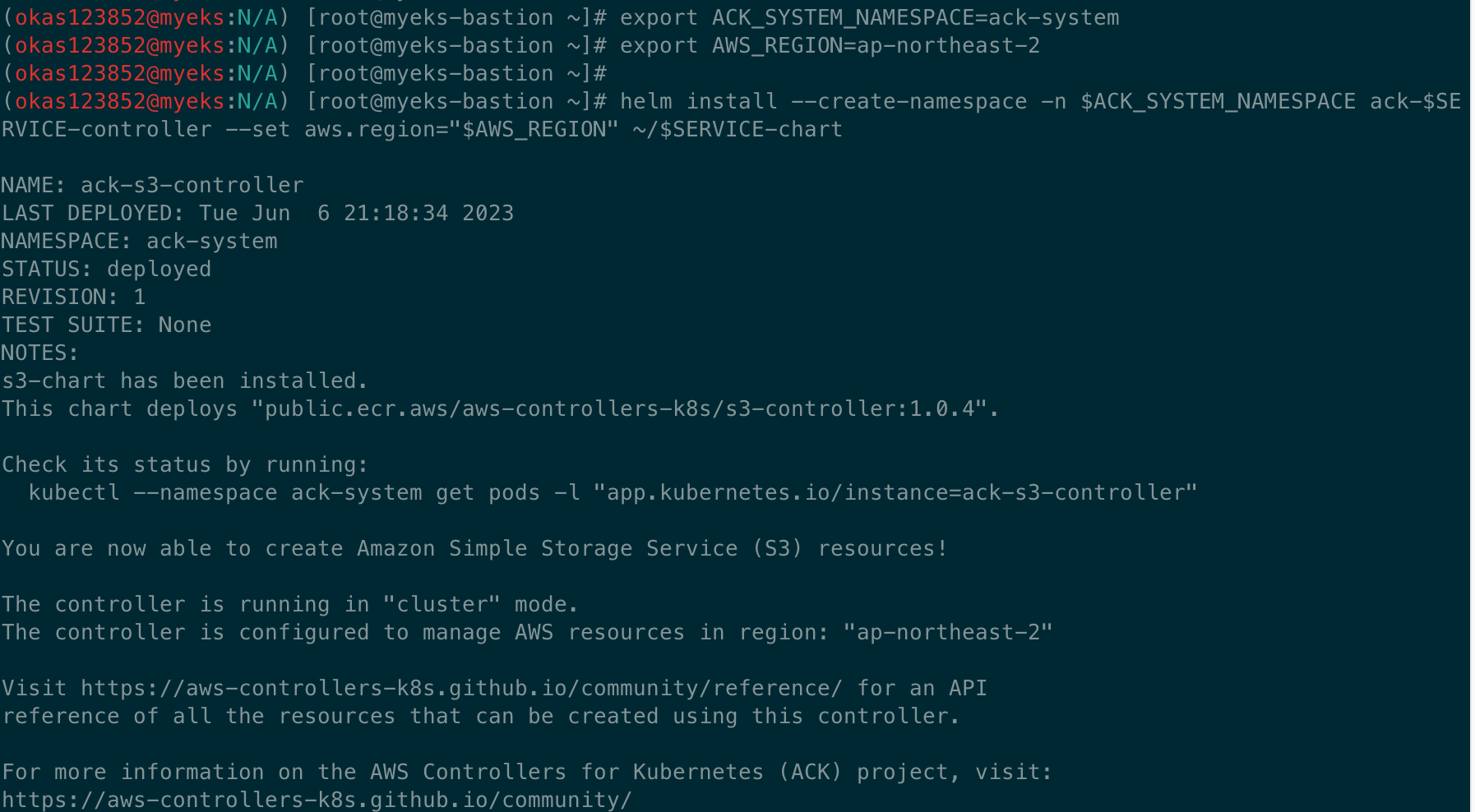

# ACK S3 Controller 설치
export ACK_SYSTEM_NAMESPACE=ack-system
export AWS_REGION=ap-northeast-2
helm install --create-namespace -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller --set aws.region="$AWS_REGION" ~/$SERVICE-chart

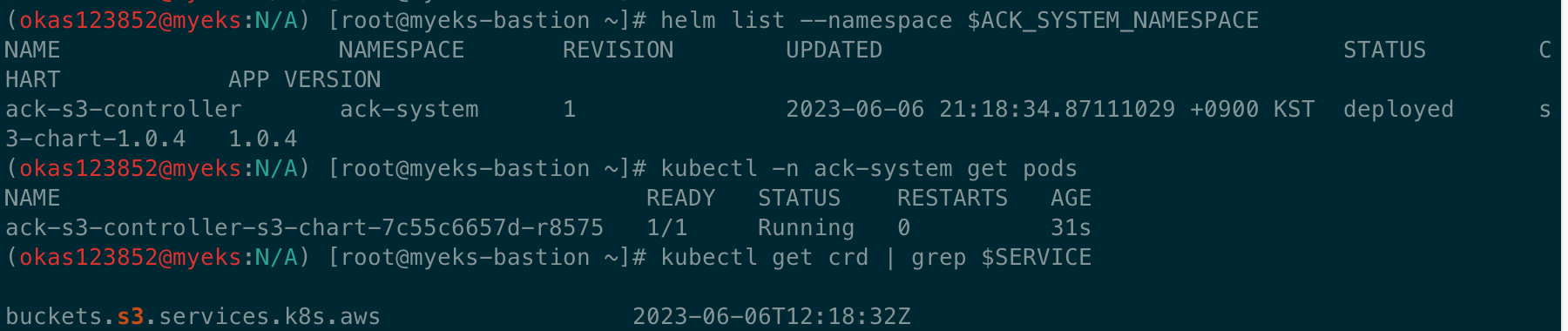

# 설치 확인
helm list --namespace $ACK_SYSTEM_NAMESPACE
kubectl -n ack-system get pods
kubectl get crd | grep $SERVICE
buckets.s3.services.k8s.aws                  2022-04-24T13:24:00Z

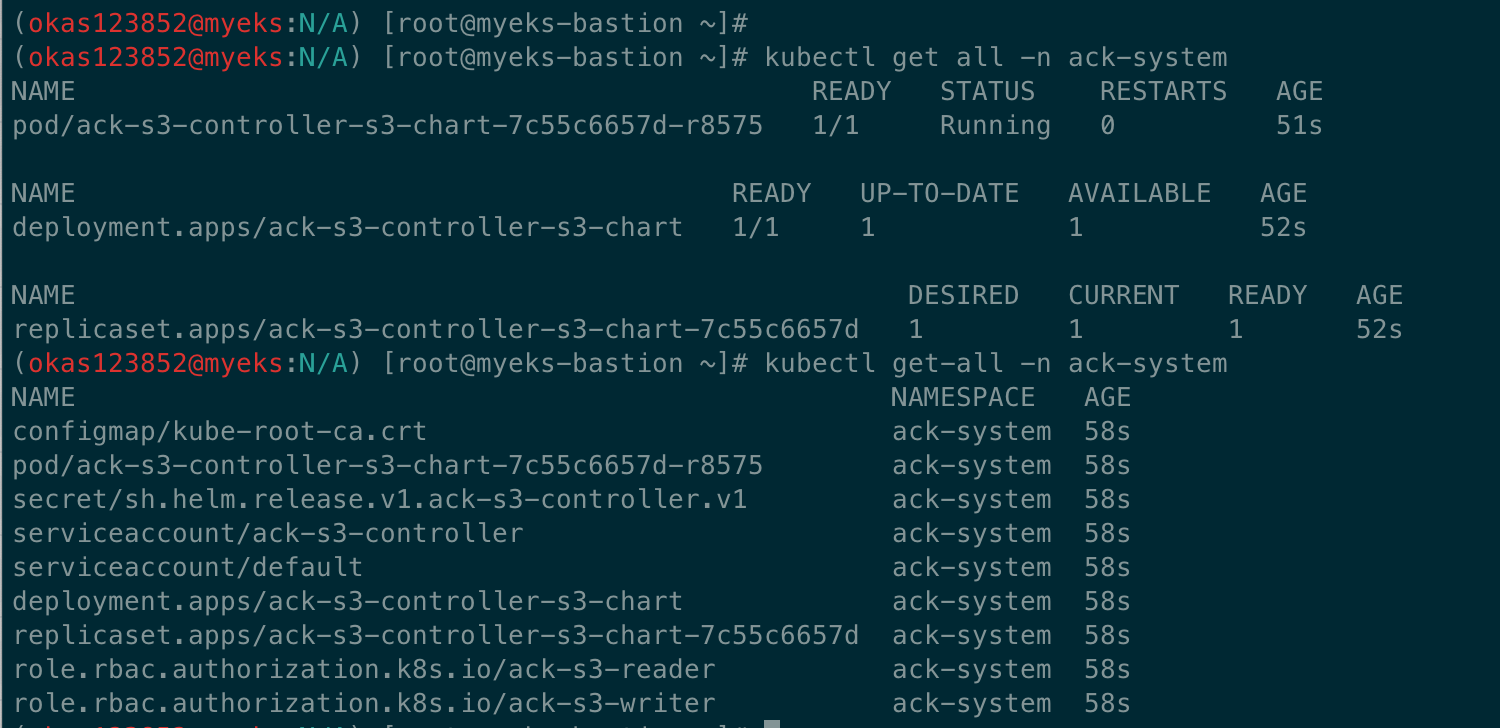

kubectl get all -n ack-system
kubectl get-all -n ack-system
kubectl describe sa -n ack-system ack-s3-controller



IRSA 설정  참조(https://aws-controllers-k8s.github.io/community/docs/user-docs/irsa/) -권한 FullAccess

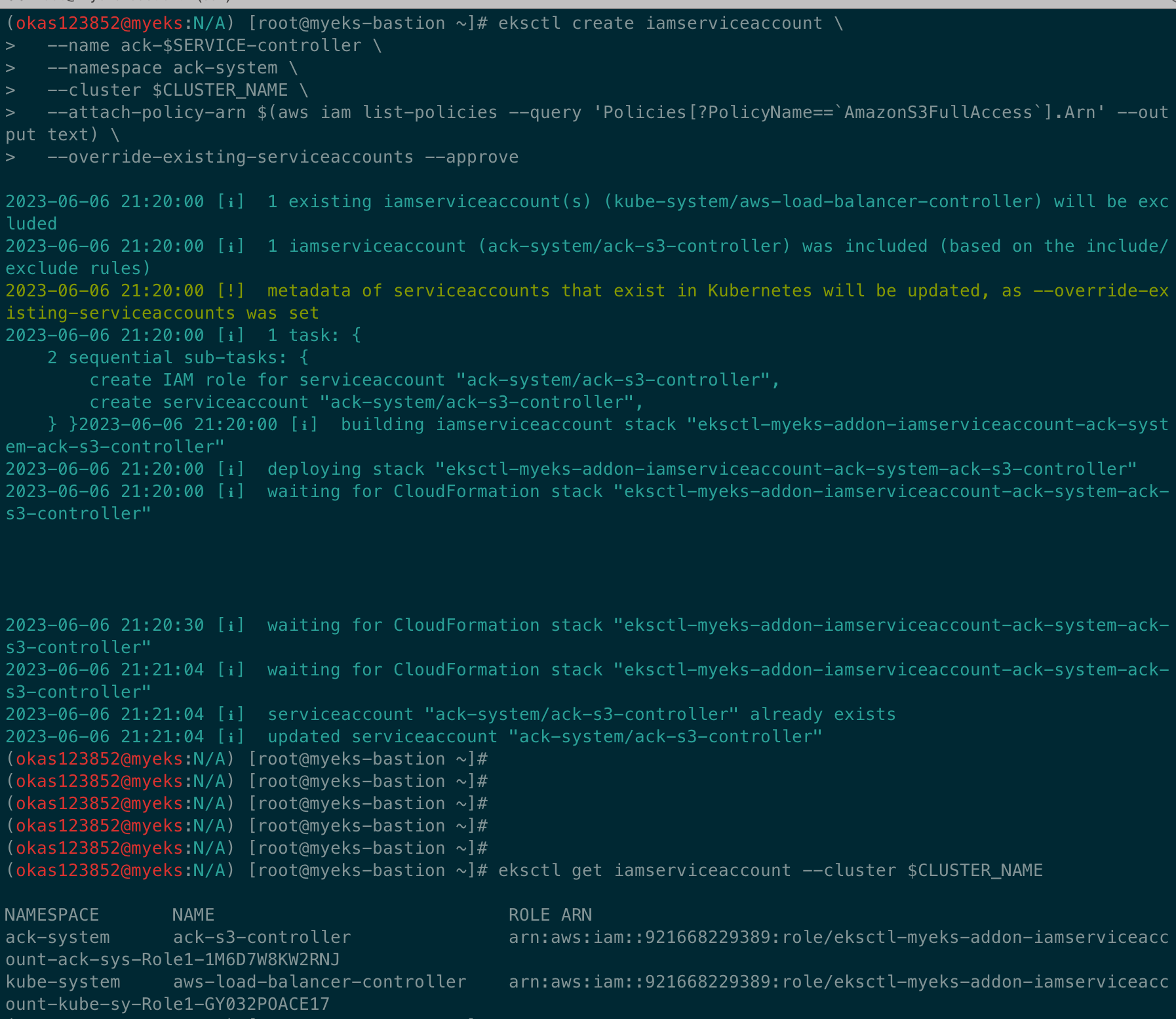

# Create an iamserviceaccount - AWS IAM role bound to a Kubernetes service account
eksctl create iamserviceaccount \
  --name ack-$SERVICE-controller \
  --namespace ack-system \
  --cluster $CLUSTER_NAME \
  --attach-policy-arn $(aws iam list-policies --query 'Policies[?PolicyName==`AmazonS3FullAccess`].Arn' --output text) \
  --override-existing-serviceaccounts --approve

# 확인 >> 웹 관리 콘솔에서 CloudFormation Stack >> IAM Role 확인
eksctl get iamserviceaccount --cluster $CLUSTER_NAME

# Inspecting the newly created Kubernetes Service Account, we can see the role we want it to assume in our pod.
kubectl get sa -n ack-system
kubectl describe sa ack-$SERVICE-controller -n ack-system

# Restart ACK service controller deployment using the following commands.
kubectl -n ack-system rollout restart deploy ack-$SERVICE-controller-$SERVICE-chart

# IRSA 적용으로 Env, Volume 추가 확인
kubectl describe pod -n ack-system -l k8s-app=$SERVICE-chart
...





S3 생성, 삭제

# [터미널1] 모니터링
watch -d aws s3 ls

# S3 버킷 생성을 위한 설정 파일 생성
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text)
export BUCKET_NAME=my-ack-s3-bucket-$AWS_ACCOUNT_ID

read -r -d '' BUCKET_MANIFEST <<EOF
apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
  name: $BUCKET_NAME
spec:
  name: $BUCKET_NAME
EOF

echo "${BUCKET_MANIFEST}" > bucket.yaml
cat bucket.yaml | yh

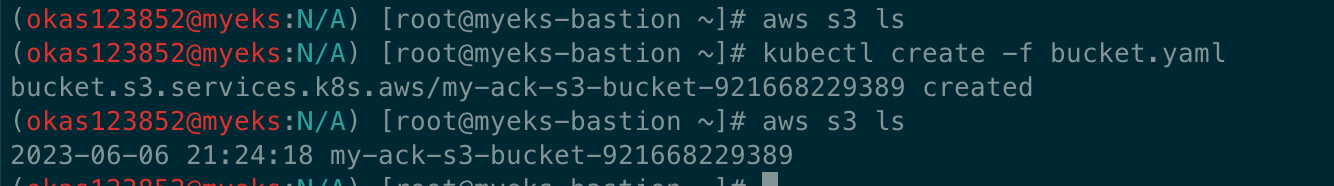

# S3 버킷 생성
aws s3 ls
kubectl create -f bucket.yaml
bucket.s3.services.k8s.aws/my-ack-s3-bucket-<my account id> created

# S3 버킷 확인
aws s3 ls
kubectl get buckets
kubectl describe bucket/$BUCKET_NAME | head -6
Name:         my-ack-s3-bucket-<my account id>
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  s3.services.k8s.aws/v1alpha1
Kind:         Bucket

aws s3 ls | grep $BUCKET_NAME
2022-04-24 18:02:07 my-ack-s3-bucket-<my account id>

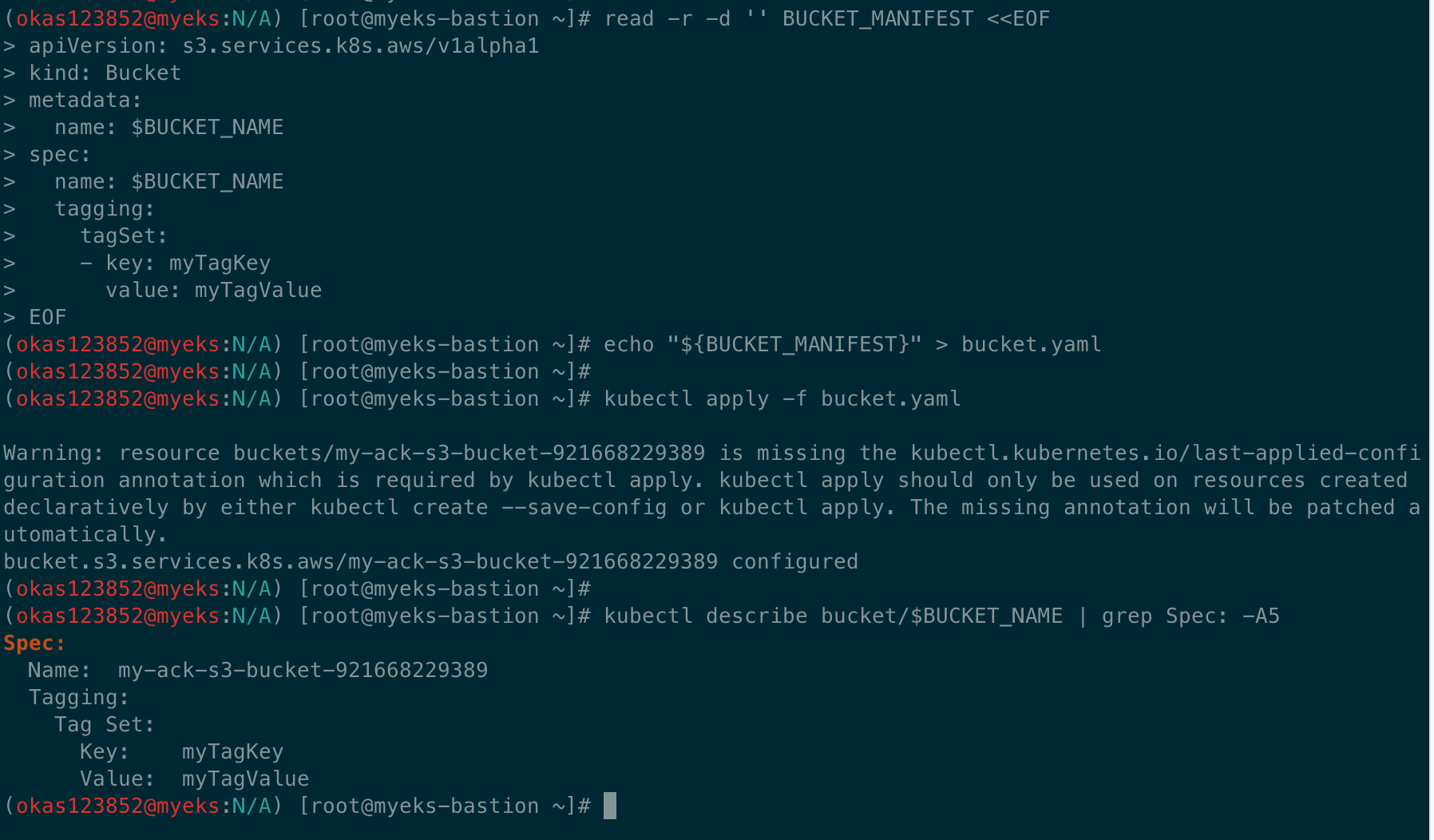

# S3 버킷 업데이트 : 태그 정보 입력
read -r -d '' BUCKET_MANIFEST <<EOF
apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
  name: $BUCKET_NAME
spec:
  name: $BUCKET_NAME
  tagging:
    tagSet:
    - key: myTagKey
      value: myTagValue
EOF

echo "${BUCKET_MANIFEST}" > bucket.yaml

# S3 버킷 설정 업데이트 실행 : 필요 주석 자동 업뎃 내용이니 무시해도됨!
kubectl apply -f bucket.yaml

# S3 버킷 업데이트 확인
kubectl describe bucket/$BUCKET_NAME | grep Spec: -A5
Spec:
  Name:  my-ack-s3-bucket-<my account id>
  Tagging:
    Tag Set:
      Key:    myTagKey
      Value:  myTagValue

# S3 버킷 삭제
kubectl delete -f bucket.yaml

# verify the bucket no longer exists
kubectl get bucket/$BUCKET_NAME
aws s3 ls | grep $BUCKET_NAME

실습 종료

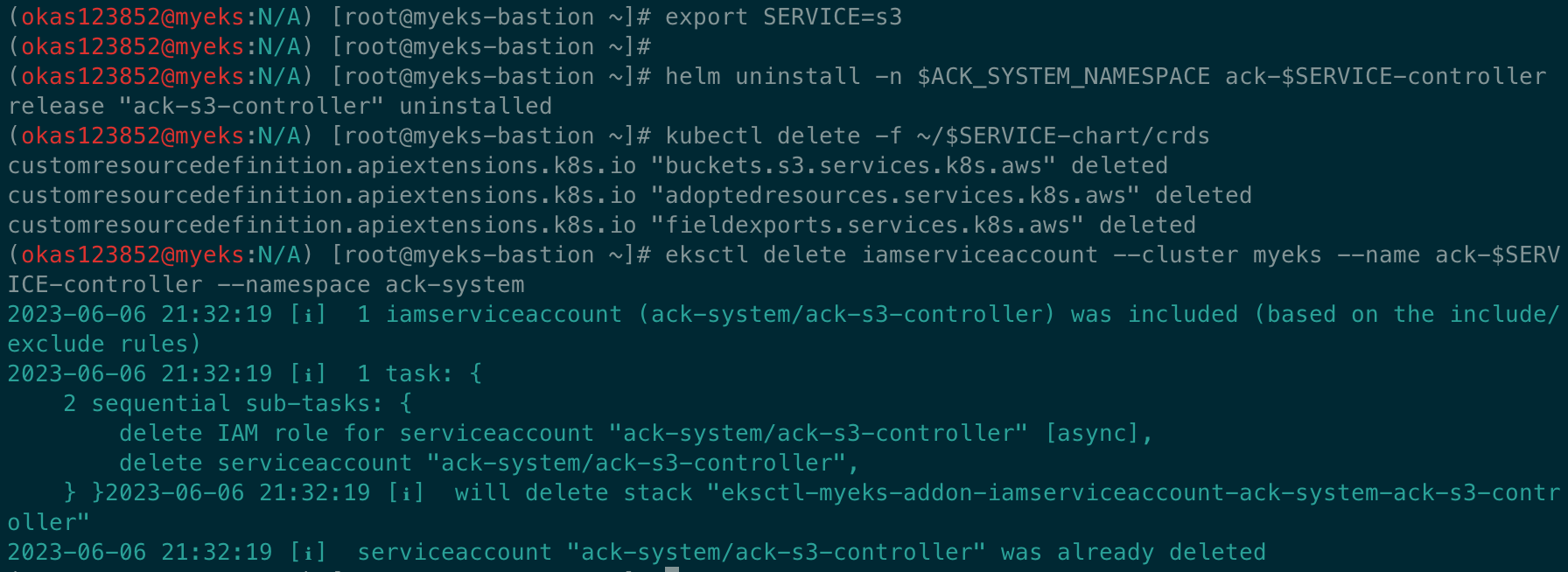

컨트롤러 삭제

# helm uninstall
export SERVICE=s3
helm uninstall -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller

# ACK S3 Controller 관련 crd 삭제
kubectl delete -f ~/$SERVICE-chart/crds

# IRSA 삭제
eksctl delete iamserviceaccount --cluster myeks --name ack-$SERVICE-controller --namespace ack-system

# namespace 삭제 >> ACK 모든 실습 후 삭제
kubectl delete namespace $ACK_K8S_NAMESPACE
